PrestaShop – Mastercard Gateway

Created date: 06-04-23   |   Updated date: 23-09-25   |   Plugin version: 1.4.4  |   API version: 100

Configuration

After installing the Mastercard Gateway extension, you need to access it. Follow these steps to configure it properly:

1. Access the Configuration Menu

Prestashop Admin Login Page
PrestaShop Login Page
  • First, log in to your PrestaShop Admin Panel.
Prestashop Admin dashboard
Admin dashboard
  • After logging in, you will be redirected to the Admin dashboard.
Navigate to Modules then to Module Manager
Modules → Module Manager
  • Navigate to the menu on the left side and follow this path Modules → Module Manager
Image of module manager with category filter dropdown highlighting payment option
Category → Payment
  • Under the Modules Tab, choose the Category dropdown → Payment.
Locate Mastercard gateway and its associated Configure button from module manager list
Mastercard Gateway

2. Locate the Mastercard Module

  • Scroll down the page until you find the module labeled Mastercard Gateway and click on the Configure button option next to it.

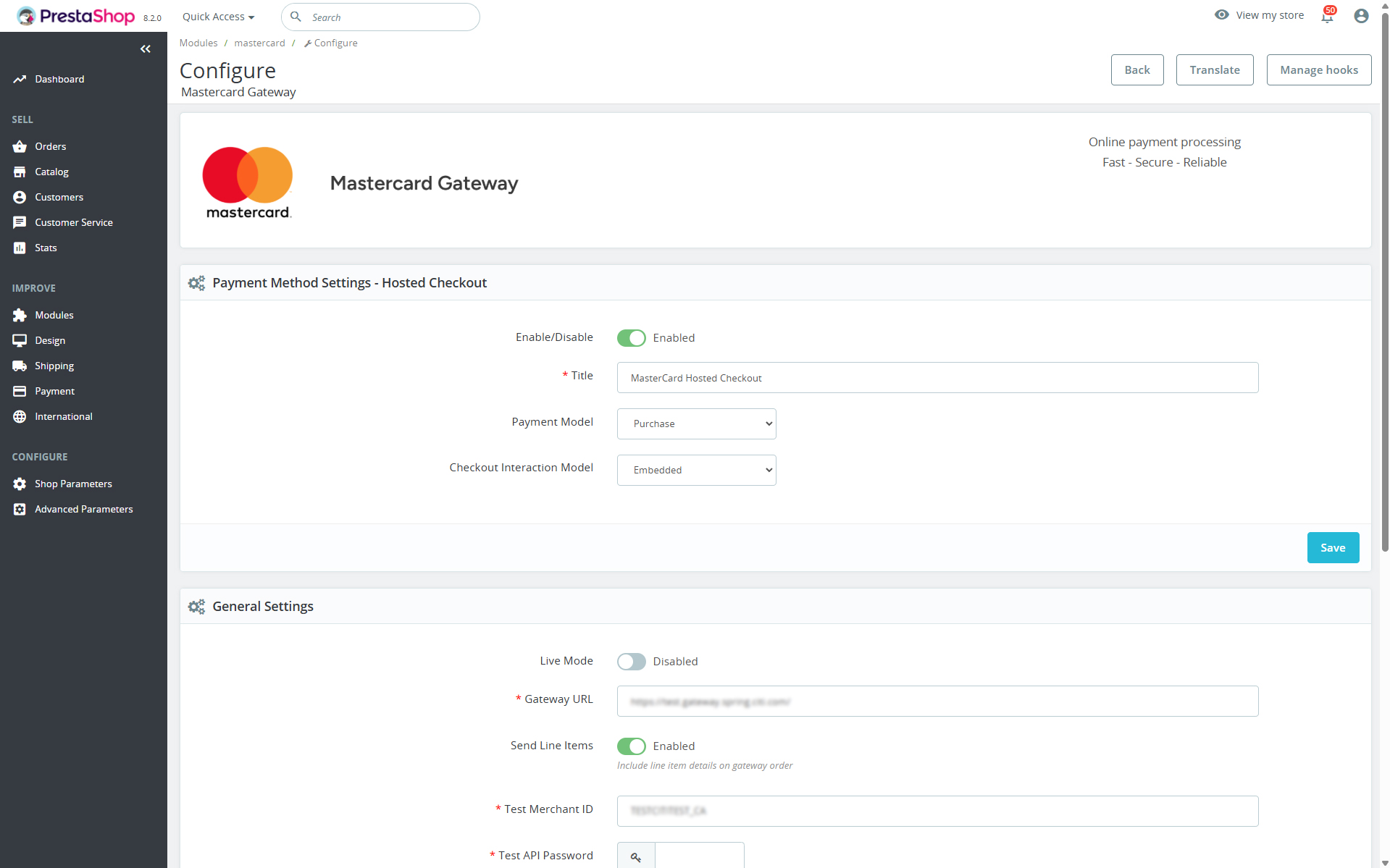

Mastercard Gateway Options
Mastercard Gateway Options

3. Configure the Extension

  • In the Mastercard Gateway module, you’ll see options to how you want to configure the payments. There are three sections to configure fields:
    • General Settings: In the ‘General Settings’ section, you can select the Mode, Merchant ID, API Password, API Endpoint, etc., for your payment gateway.
    • Payment Method Settings – Hosted Checkout: In this section, you can specify Payment Model options, Checkout Interaction Model, and more.
    • Advanced Parameters: In the ‘Additional Parameters’ section, you can select the Logging Verbosity, Gateway Order ID Prefix, and Custom Webhook Endpoint.
